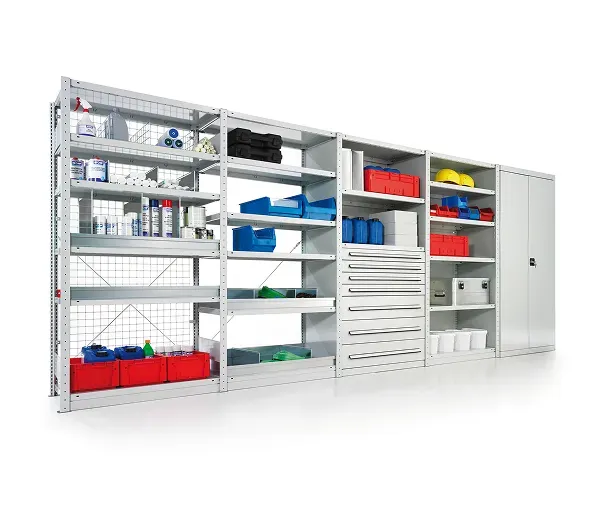

Name: QUICK boltless shelving
Brand: META

Diversity on a "two-component basis"

Consisting of just two system components (frame and shelves), complex shelf rows are created for all small parts storage applications (e.g. spare parts magazine in industry and trade, sales storage in the production connection trade). Two frame variants are available: completely disassembled (META QUICK S3) or with pre-assembled frames (META QUICK).

Product information

Properties

Simple plug-in installation

Quick assembly and conversion without tools

Frame variants

S3 (disassembled) / clinched (prefabricated) frame

Shelf variants

Single/double-sided shelf

Mounting variants

Plug-in assembly with shelf clips + diagonal struts (shelf use on one side) / with longitudinal ledgers (shelf use on both sides)

Extensive range of system accessories

Bin fronts, compartment dividers, storage boxes, drawers, doors,...

Shelving, cupboard and magazine equipment

Flexibly combinable modules based on the QUICK system allow you to customise the equipment to your requirements

Shelves height-adjustable in 25 mm increments

for variable adaptation to the stored goods

Shelves with perforations in 50 mm increments

For holding compartment dividers or mesh dividers (exception: 80 kg shelves)

Load data

Shelf load up to 330 kg
Field load up to 4,400 kg

Surface

Sendzimir galvanised or additionally plastic-coated RAL 7035 light grey

Order proposals

Car rack (V-belt rack, exhaust storage rack)
Sign & wire basket rack
HT rack
Corner rack
Occupational safety rack

Safety instructions

Shelves with a height/depth ratio ≥ 4 : 1 must be secured against tipping (wall or floor anchoring).
Shelf/ bay loads apply to evenly distributed loads. Bay load specifications apply to rows of shelves with 3 or more bays.

Dimensions

Heights: 1,000¹, 1,500, 1,850, 2,000, 2,200, 2,500, 3,000, 3,500¹, 4,000¹, 4,300¹, 4,500¹ mm
Depths: 300, 400, 500, 600, 800 mm
Lengths: 750, 1,000, 1.250, 1,300, 1,500, 1,700 mm

¹on request

Basic bay: nominal length + 56 mm - nominal depth +36 mm
Add-on bay: nominal length + 6 mm - nominal depth +36 mm
