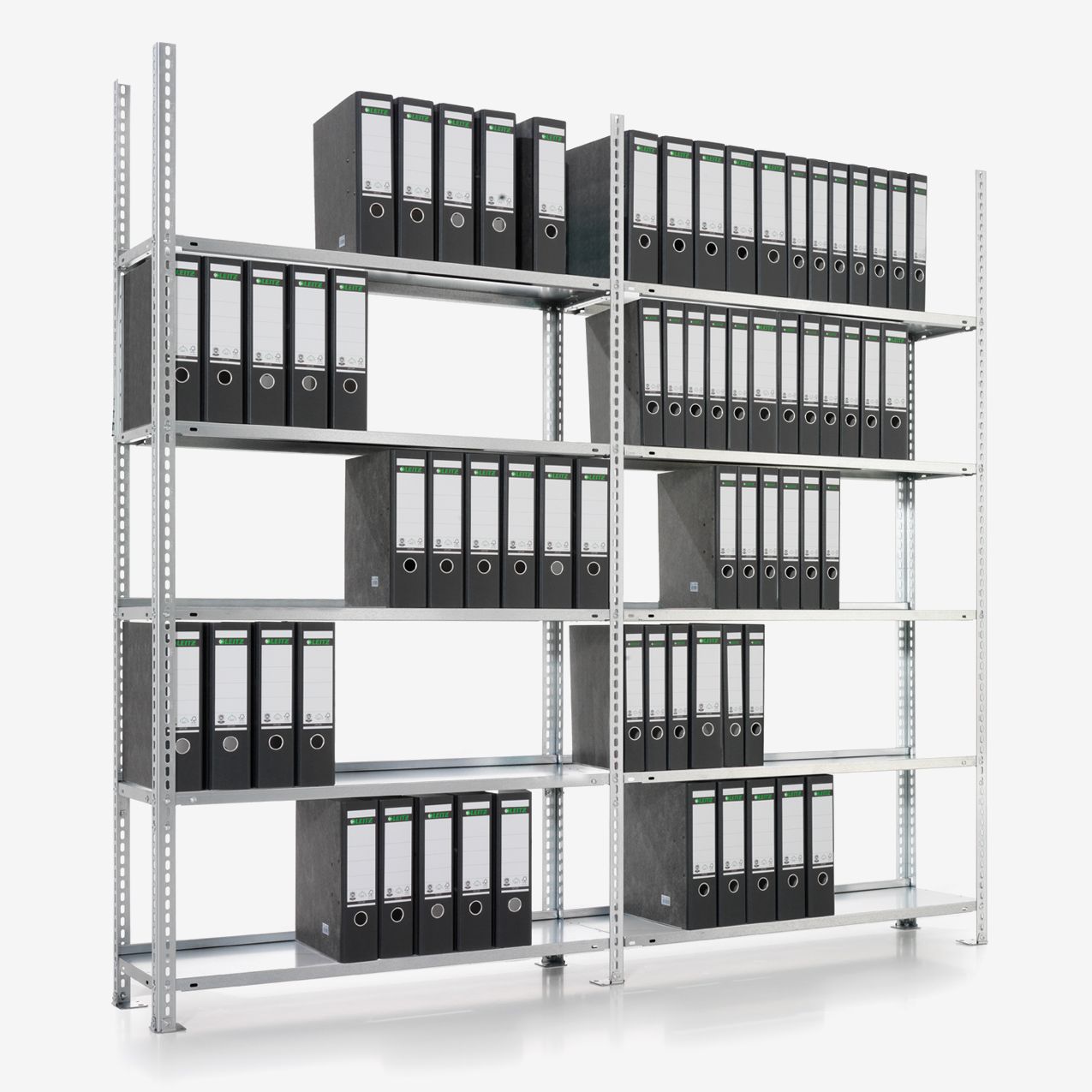

META COMPACT bolted shelving
META COMPACT bolted shelving
The classic for fixed installations
The screw-mounted office shelf for organized storage of files, folders and documents. Bolted shelving is the classic solution for fixed installation of individual shelving bays or rows. They are screwed together completely from the outside using offset screwdrivers.
Product information
Properties
Simple assemblyScrewing with offset screwdriver (included in the scope of delivery), simplification with fixed bracket with integrated thread and lens flange head with hexagon socket
Individual customizationadapts to your office landscape thanks to different shelf heights and widths
Shelves complete with end/center stopFor optimum storage of files, cover shelf without end/center stops
Shelves height-adjustable in 1" (25 mm) incrementsfor variable adaptation to the stored goods
Load dataShelf payload up to 220 lbs (100 kg)
SurfaceSendzimir galvanized or additionally plastic-coated RAL 7035 light grey
Safety instructions
Shelves with a height/depth ratio ≥ 4 : 1 must be secured against tipping. Shelf/ bay loads apply to evenly distributed loads. Bay load specifications apply to rows of shelves with 3 or more bays.
Dimensions
Heights: 73, 87, 98 inch
Depths: 12, 24 inch
Lengths: 30, 39, 49 inch
Heights: 1,850, 2,200, 2,500 mm
Depths: 300, 600 mm
Lengths: 750, 1,000, 1,250 mm
