META
MINI-RACK
META
MINI-RACK
For a wide range of applications

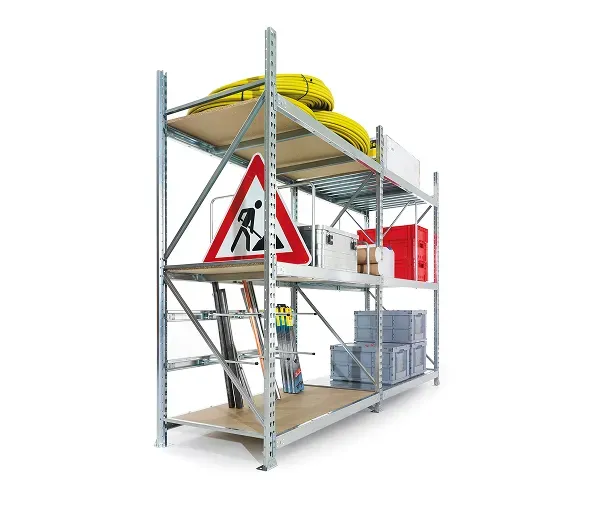

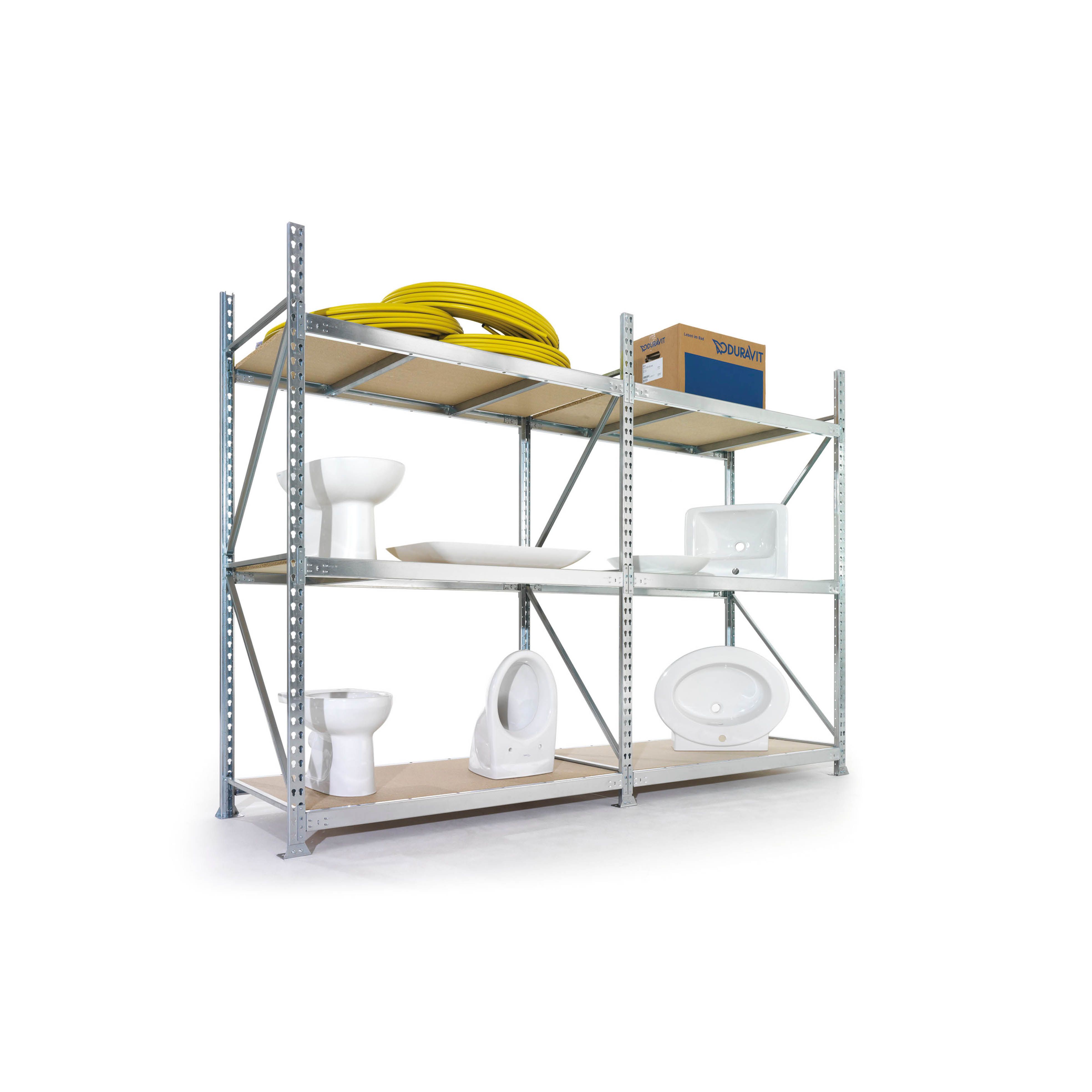

META MINI-RACK is a versatile and practical wide-span rack for large, bulky and heavy items. Large storage areas for bulky items make storage and retrieval easier.
Product information
Properties
Complete racks with particle board or steel panels as shelvesVersatile and practical wide-span rack for all requirements
Simple plug-in installationQuick assembly and conversion without tools
Height-adjustable shelf levelsIn a grid of 2" (50 mm)

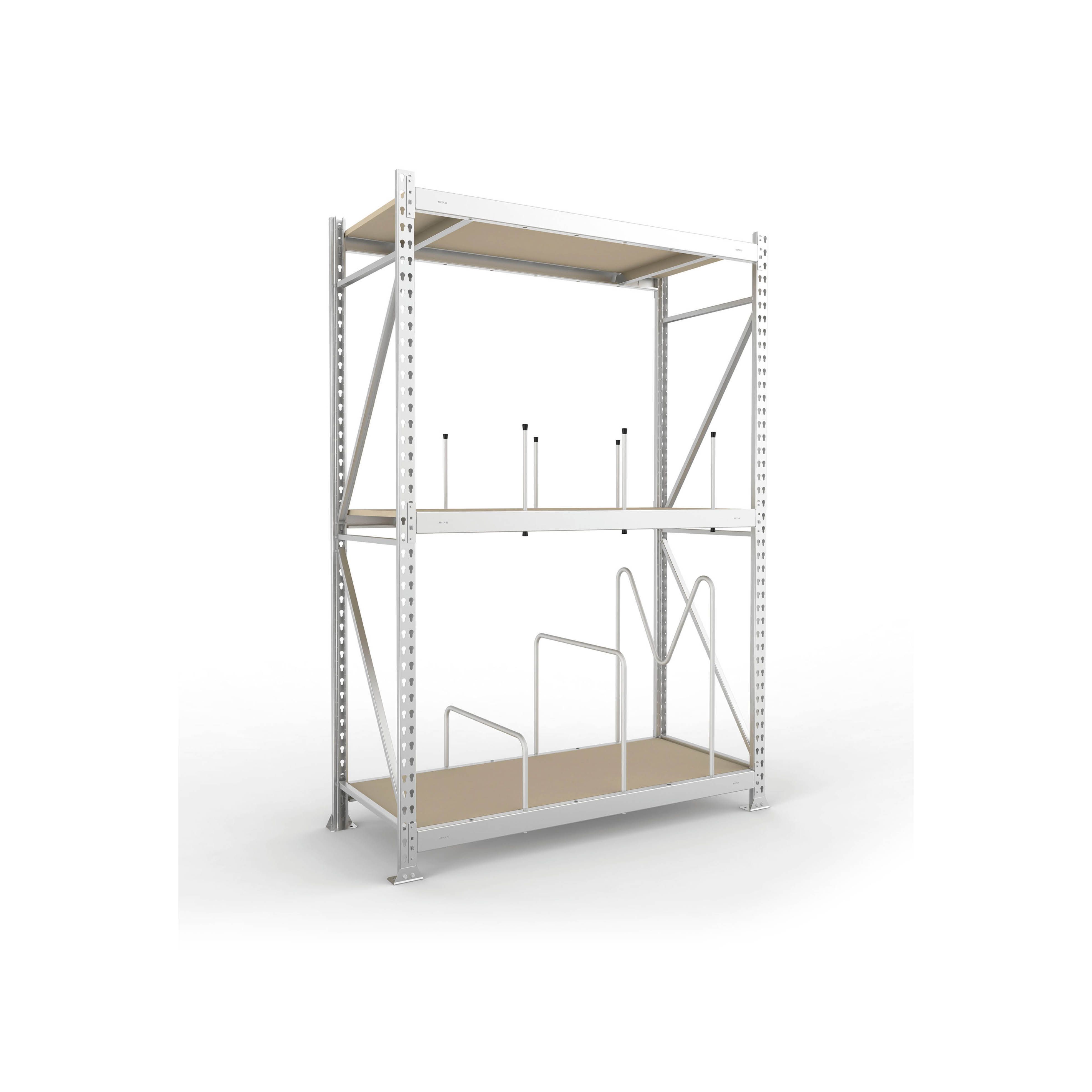

Mounting of dividers possibleBy perforating the step rail in 8" (200 mm) increments
Load dataShelf load up to 1323 lbs (600 kg)
Field load up to 10141 lbs (4,600 kg)
SurfaceFrame and infill: sendzimir galvanized

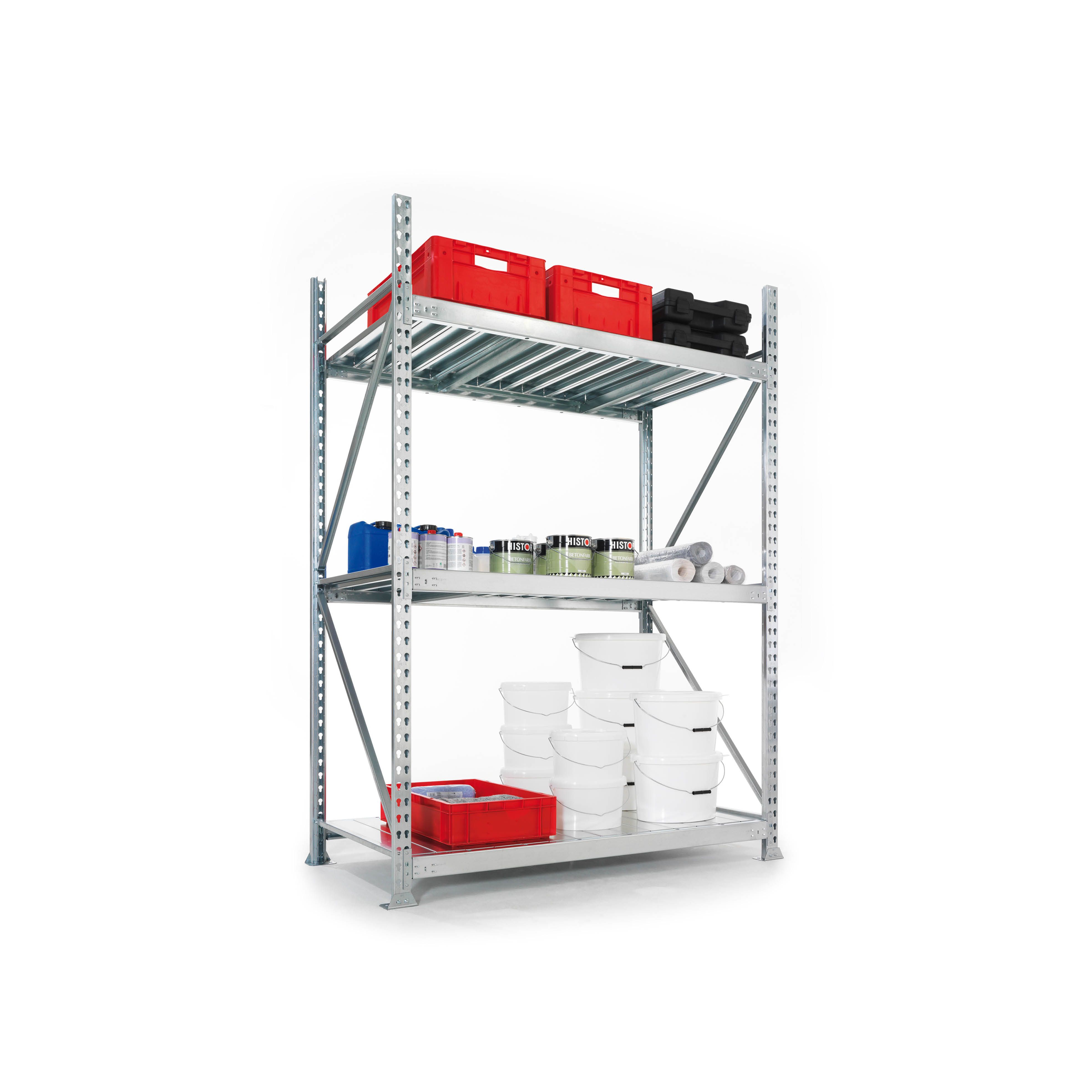

Shelves: natural particle board or steel panels
Safety instructions
Shelves with a height/depth ratio ≥ 4 : 1 must be secured against tipping (wall or floor anchoring).
Shelf/ bay loads apply to evenly distributed loads. Bay load specifications apply to rows of shelves with 3 or more bays.
Dimensions
Heights: 87, 98, 118 inch
Depths: 26, 31, 41 inch
Lengths: 55, 71, 87, 102 inch
Heights: 2,200, 2,500, 3,000 mm
Depths: 650, 800, 1,050 mm
Lengths: 1,400, 1,800, 2,200, 2,600 mm
